Winch hoist can be made into point drop point and double lifting point Winch hoist, which can lift plane gate, is widely used in all kinds of drainage, water conservancy and hydropower projects. It can lift steel gate and plane gate to realize gate opening and lifting. There are many types of winch hoist in Xinhe Rongcheng water conservancy machinery plant: QPQ ordinary winch hoist, qpk fast winch hoist, qpg high lift winch hoist Hoist, QPT trolley hoist, QPM gantry hoist, QH radial gate hoist. Winch hoist is divided into: flat door winch hoist; arc door winch hoist; double lifting point winch hoist; fast winch hoist; mobile trolley hoist; double lifting point winch hoist is divided into two types: centralized drive and separate drive; winch hoist manual and electric dual-purpose specification is divided into: 5T, 8t, 12t, 16t and 25t; winch hoist manual and electric dual-purpose specification is divided into: 5T, 8t, 12t, 16t and 25t; The specifications of electric type are: 40t, 63T, 80t, 100t, 125t, 160t, 200t. It can be designed according to the user's requirements and can produce double lifting point winch hoist. It is a kind of special machinery for water conservancy engineering, which is widely used for the gate opening and closing of water conservancy engineering. It is used for farmland irrigation, aquaculture, agricultural economic development zone, sewage treatment plant, Water Conservancy Power Station, reservoir (sluice) It can be used in mountainous areas, plain areas with or without electricity.

　　The winch hoist is suitable for use there

　　The winch hoist is a kind of special machinery for water conservancy projects, which is widely used for the gate opening and closing of water conservancy projects. It is a supporting machinery for water intake and return sluice in farmland irrigation, aquaculture, agricultural economic development zone, sewage treatment plant, Water Conservancy Power Station, reservoir (sluice, dam, tunnel, pipeline), etc., which can be used in mountainous areas, plain areas with or without electricity. According to the user's hydraulic engineering design requirements, it can also produce double lifting point winch hoist.

　　Precautions for use of winch hoist:

　　1. The wire ropes on the drum shall be arranged in order. In case of overlapping and skew winding, the machine shall be stopped and rearranged. It is strictly forbidden to step on the wire rope with hands and feet during the rotation. The wire rope shall not be fully released and shall be kept for at least three circles.

　　2. The wire rope shall not be knotted or twisted, and it shall be replaced when the wire breakage exceeds 10% within a pitch.

　　3. During the operation, no one is allowed to cross the wire rope, and the operator is not allowed to leave the hoist after the object (object) is lifted. When resting, the object or cage should be lowered to the ground.

　　4. During the operation, the driver and signalman shall keep good visibility with the lifting objects, and the driver and signalman shall closely cooperate and obey the unified command of the signal.

　　5. In case of power failure during operation, cut off the power supply and lower the lifting object to the ground.

　　6. Follow the signal of the commander in the work. When the signal is unclear or may cause an accident, the operation shall be suspended and the operation can be continued after the situation is clear.

　　7. In case of sudden power failure during operation, the knife switch shall be opened immediately and the transported goods shall be put down.

　　8. After the operation, the material tray shall be landed and the electric box shall be closed and locked.

　　Winch hoist is mainly used for hoisting, pulling, unloading, pushing and dragging heavy objects. It is suitable for construction, bridge, metallurgy, mining and other enterprise sites. It is used for material lifting and large hoisting projects as winch hoist and winch hoist. It is widely used in plane gate and radial gate. Our factory has QP, QPQ, qpk, qpg, QPT and other series products. Generally, the fixed winch hoist below 400kN can be equipped with hand mechanism. It is widely used because of its wide adaptability in the aspects of opening and closing force and lift.

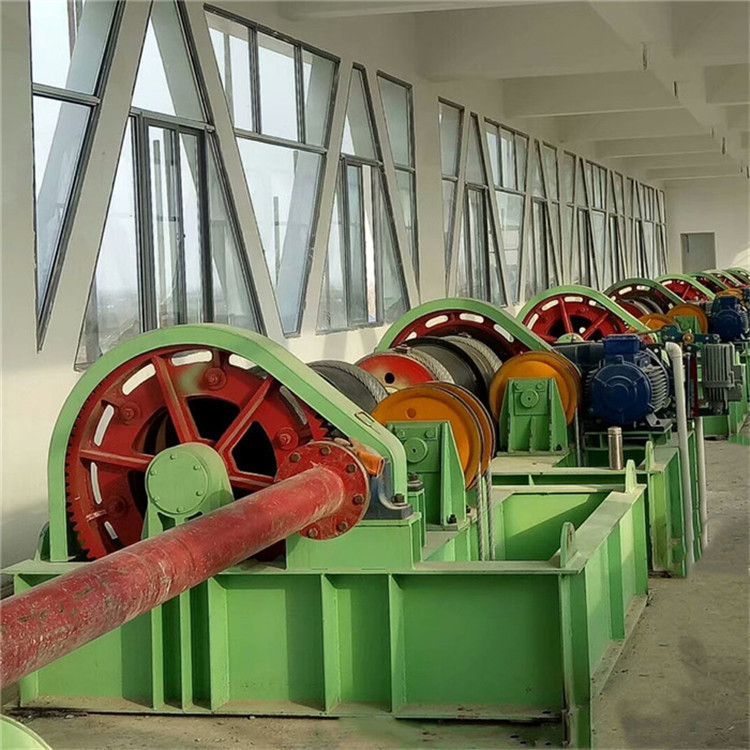

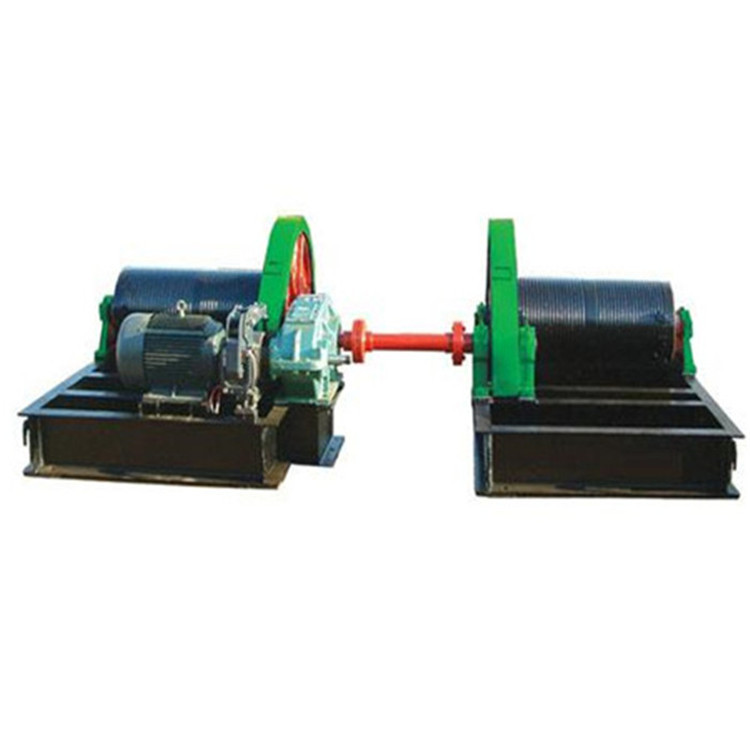

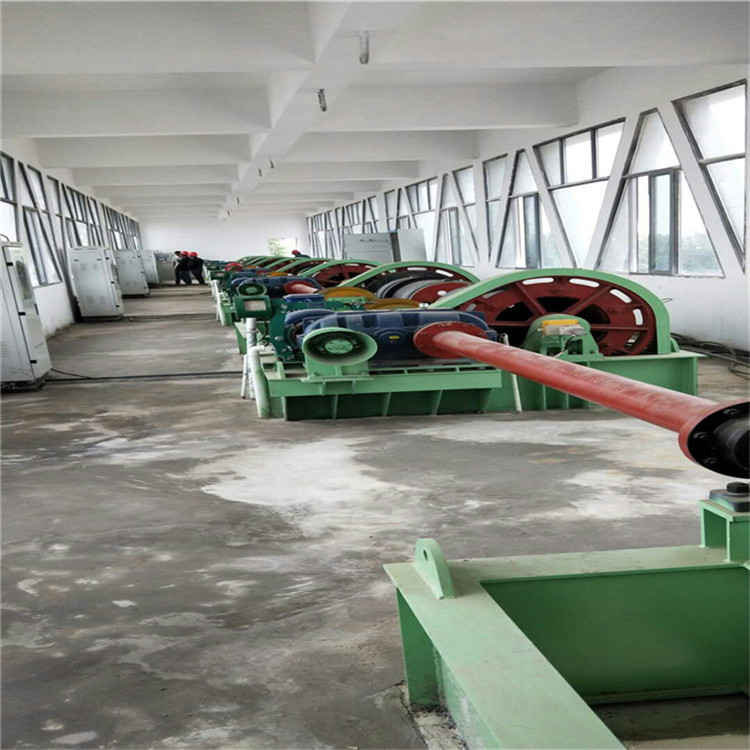

　　Winch hoist, also known as winch hoist, is connected with the gate by using steel cable or steel cable pulley block as spreader. Through the gear transmission system, the winch drum can wind and put steel cable to drive the lifting machine, also known as wire rope fixed winch. It is simple in structure, easy to manufacture, convenient in maintenance and overhaul, and widely used in the opening and closing of various types of gates. Winch hoist is divided into two types: single lifting point and double lifting point. The double lifting point winch hoist connects two single lifting point hoists together through the connecting shaft for synchronous operation, which can be driven on one side or on both sides. Hoist is usually a gate with a hoist, installed on the pier higher than the top of the gate slot. The capacity of the winch hoist that has been produced and put into operation in China has reached: the opening force is 6000kn, the opening and closing stroke is 30m, and the opening force is 4000kn, the opening and closing stroke is 120m.
