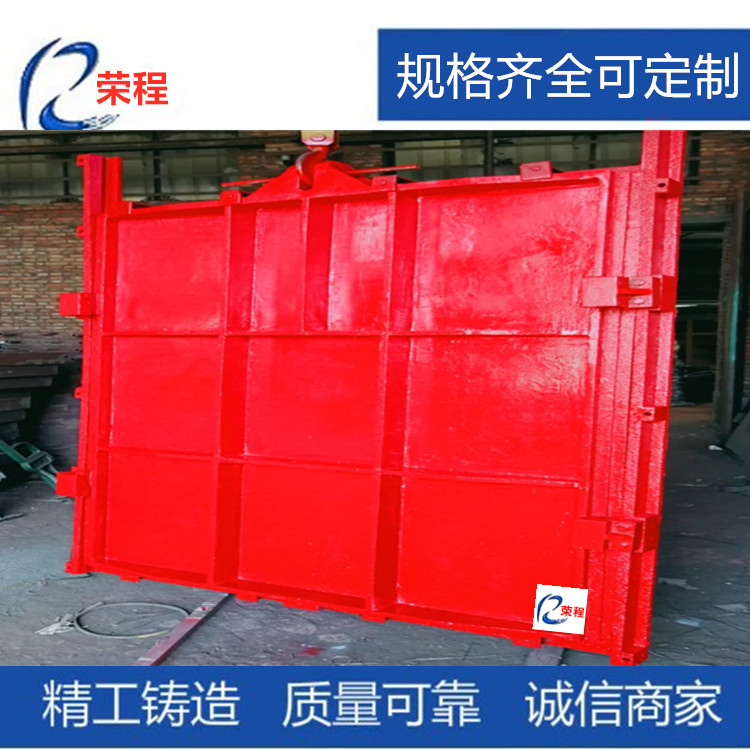

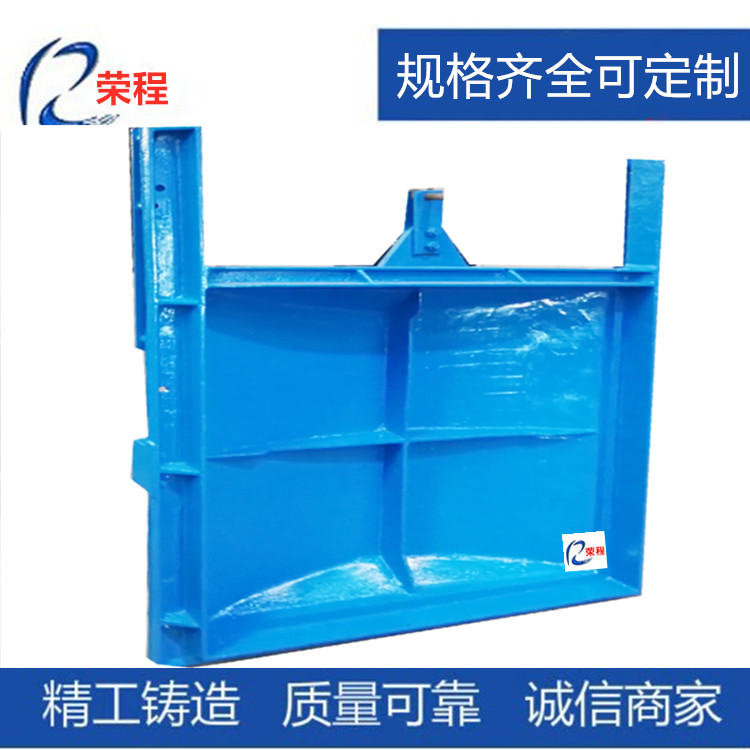

There are two kinds of cast iron gates: square and round. Cast iron gate is generally composed of gate leaf and gate frame. The material of gate body and gate frame is cast iron, which is generally cast and processed as a whole.

　　The door body generally adopts the structure of panel and reinforcing rib, and the panel can be plane or arch. The door body is generally cast and machined as a whole, but the larger size can be divided into blocks. Generally, the integral metal water stop is used on the door body, which is also used as the supporting slider. The metal water stop is fastened on the door body with countersunk screws made of the same material. The screw head and the water stop working face are finished together. Some larger sizes can also be "P" shaped rubber water stop.

　　The door frame is the connecting member between the cast iron gate and the foundation, which is equivalent to the buried height of the plane steel gate. The door frame consists of the lower door frame and the upper guide rail. The lower door frame is generally cast as a whole. The guide rail can be connected with the door frame with bolts (screws) or cast as a whole with the lower door frame. When the door body is opened to the position, the top of the guide rail should be higher than the horizontal center line of the door body.

　　Features of cast iron gate:

　　Generally, the cast iron gate is equipped with adjustable wedging device, and the wedging pairs (such as wedges and wedges, wedges and eccentric pins, etc.) are respectively set on the door body and the door frame. Adjusting the wedge tightening device can make the gate close to the door frame when the gate is closed, so as to meet the water stop requirements.

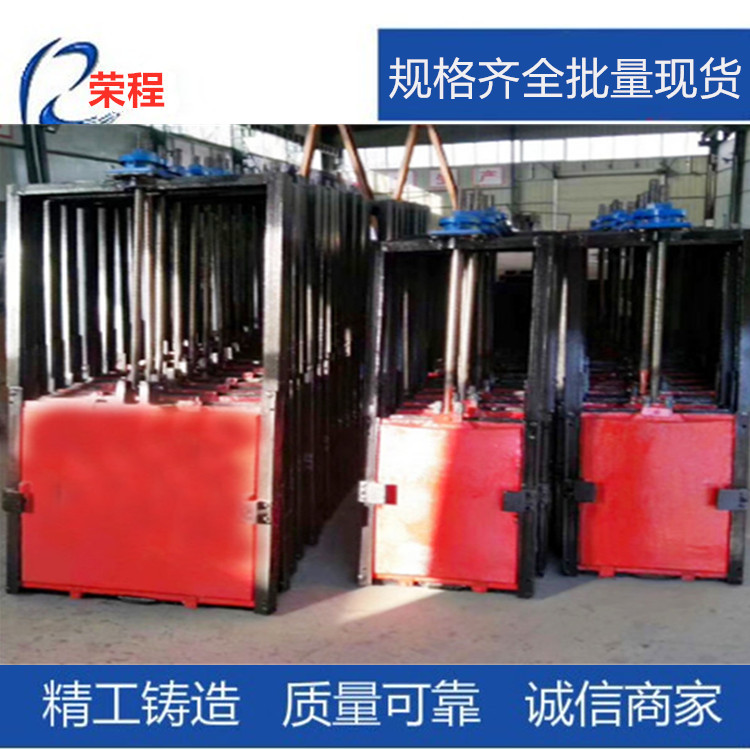

　　Cast iron gate is usually equipped with manual or electric screw hoist to operate the gate.

　　Cast iron gate has the following characteristics:

　　Simple layout, compact structure, space saving; simple operation and maintenance, reduce operating costs, but the cost of cast iron gate is slightly higher than that of steel gate.

　　Strong corrosion resistance. The door body and frame are made of cast iron, copper alloy or stainless steel and other corrosion-resistant materials. It is especially suitable for sewage or seawater environment. Where there are special requirements, nickel chromium alloy cast iron and other materials with stronger corrosion resistance can also be used.

　　The water stop pair of cast iron gate adopts integral processing, with good water stop effect and long service life of metal water stop.

　　Cast iron gate specifications complete, products from 0.2x0.2-6.5x6.5m6.5x6.5m, and according to customer needs casting rectangular gate mass production and sales.

　　The shape of cast iron gate after forming is mostly square, round, fan-shaped and arc-shaped. However, there are different requirements in casting, according to the needs of customers casting appropriate gate.
